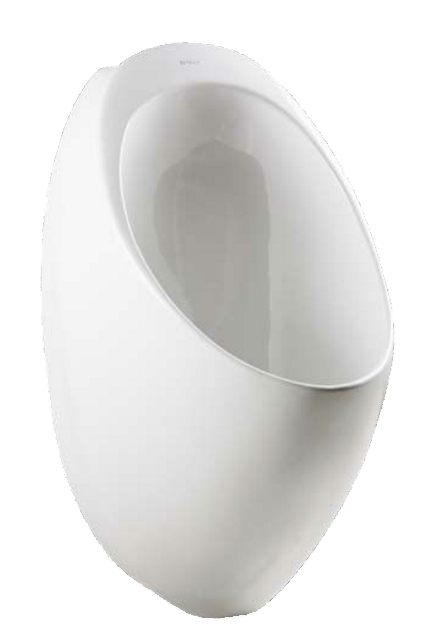

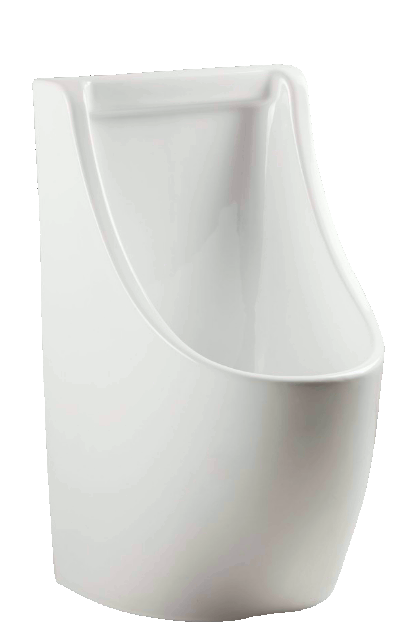

CL100 & CL101 - Dry Urinal (Ceramic)

H x D x W = 69 cm x 40 cm x 43 cm

Color: White

This wall-mounted waterless /dry urinal is ideal for high traffic public facilities. It has a patented mechanism that ensures an airtight trap to avoid foul odors coming from the pipe into the bathroom.

Made of vitreous china.


CL100                                            CL101
CL100                                                                               CL101

CL200 - Dry Toilet (Ceramic)

H x D x W = 43 cm x 48 cm x 35 cm

Color: White

This waterless /dry toilet fixture is mounted right above the composting tank. It connects to a 250mm discharge pipe.

Stylish - Easy to clean

Made of vitreous china.


CL300 - Dry Toilet (Fiberglass)

H x D x W = 16 cm x 53 cm x 40 cm

Color: White (glossy)

This waterless / dry toilet fixture is mounted on a bench, right above the composting tank. It connects to a 250mm discharge pipe.

Made of glass fiber and polyester resin, with a gelcoat (pigmented polyester resin) finishing – stainless steel inside.


CL310 - Dry Toilet (Ceramic)

H x D x W = 16 cm x 48 cm x 35 cm

Color: White

This waterless / dry toilet fixture is mounted on a bench, right above the composting tank. It connects to a 250mm discharge pipe.

Made of vitreous china.


CL400 - Dry Toilet (Fiberglass)

H x D x W = 46 cm x 53 cm x 40 cm

Color: White (glossy)

This waterless /dry toilet fixture is mounted right above the composting tank. It connects to a 250mm discharge pipe.

Made of glass fiber and polyester resin, with a gelcoat (pigmented polyester resin) finishing – stainless steel inside.


CL500 - Micro-flush Toilet (Ceramic)

H x D x W = 46 cm x 52 cm x 39 cm

Color: White

This micro-flush (~0.5 liter/flush) toilet fixture can be mounted with up to 70 cm displacement from the composting tank. It connects to a 76mm/3 inch discharge pipe which may be installed with an angle up to 45 degrees. The water connects with a standard 0.5 inch NPT connection.

The bowl is made of porcelain. The toilet has a foot-operated mechanical flush mechanism which seals the discharge pipe.


CL600 - Macerator Toilet (Ceramic)

H x D x W = 46 cm x 47 cm x 38 cm

Color: White

This toilet has a built-in electric flush that macerates (grinds) the waste and can pump it to up to 30 meters horizontal and up to 3 meter upward displacement to the composting tank. It connects to a 38mm/1.5 inch discharge pipe. The water connects with a standard 0.5 inch NPT connection. The macerator operates at 12V-20A or 24V-15A.

Operated by a wall-mounted switch. For flushing it uses approx. 0.5 liters of water.

The bowl is made of porcelain. The macerator is made of stainless steel with a glass-filled polypropylene body.


CL700 - Vacuum-flush Toilet (Ceramic)

H x D x W = 46 cm x 47 cm x 38 cm

Color: White

This vacuum flush (~0.5 liter/flush) toilet can be mounted with up to 15 meter horizontal or up to 1.8 meter upward displacement from the composting tank. It connects to a 38mm/1.5 inch discharge pipe. The water connects with a standard 0.5 inch NPT connection.

The bowl is made of porcelain. The flush is operated with an electronic switch.

This toilet requires a P700 vacuum pump (see Accessories)


CL800 - Dry Toilet (Stainless Steel)

H x D x W = 46 cm x 50 cm x 34cm

CL810 - Dry Toilet (Stainless Steel)

H x D x W = 39 cm x 50 cm x 34cm

This waterless /dry toilet fixture is mounted right above the composting tank. It connects to a 250mm discharge pipe.

Ideal for public places susceptible to vandalism. Extra strong, easy to clean.

Made entirely of stainless steel.


CL900 - Dry Toilet (Ceramic)

CL910 - Micro-flush Toilet (Ceramic)

H x D x W = 46 cm x 50 cm x 34 cm

Color: White

These toilet fixtures are mounted right above the composting tank. They connect to a 200 mm discharge pipe.

The CL900 is a waterless / dry toilet while the CL910 has a battery operated micro flush (~0.1 liter) mechanism operated with a button on the back of the toilet.

Made of vitreous china.
